Features：
1，High intensity LED source, high efficency, long lifetime, energy-saving, and environmental friendly;
2，Lamp shell integrated design, strong integrity, sufficient heat dissipation;
3，Special spraying process, anti-oxidation, anti-corrosion oxidation, fully sealed structure;
4，The integrated design of the lampshade and the lens has the functions of protection and light concentrating, and realizes the precise positioning of the light pattern;
5，The product has multiple color temperature options, high color rendering index, good color rendering, eliminates glare, and improves visual effects;
6，Wide input voltage range, and has protection circuits such as overvoltage, overheating, short circuit, etc., and works stably.
Product Desciption And Applications:

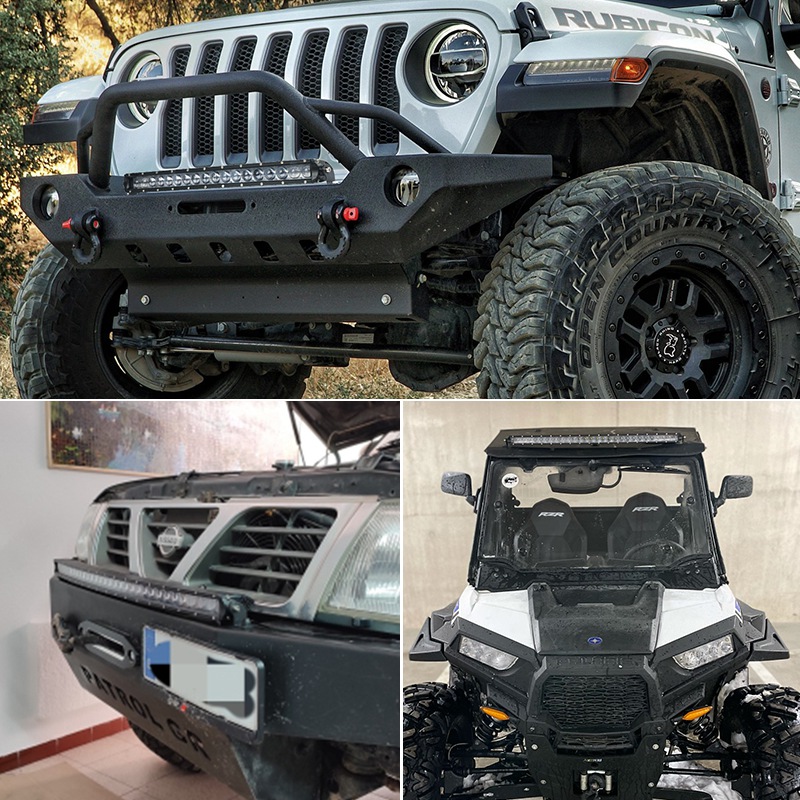

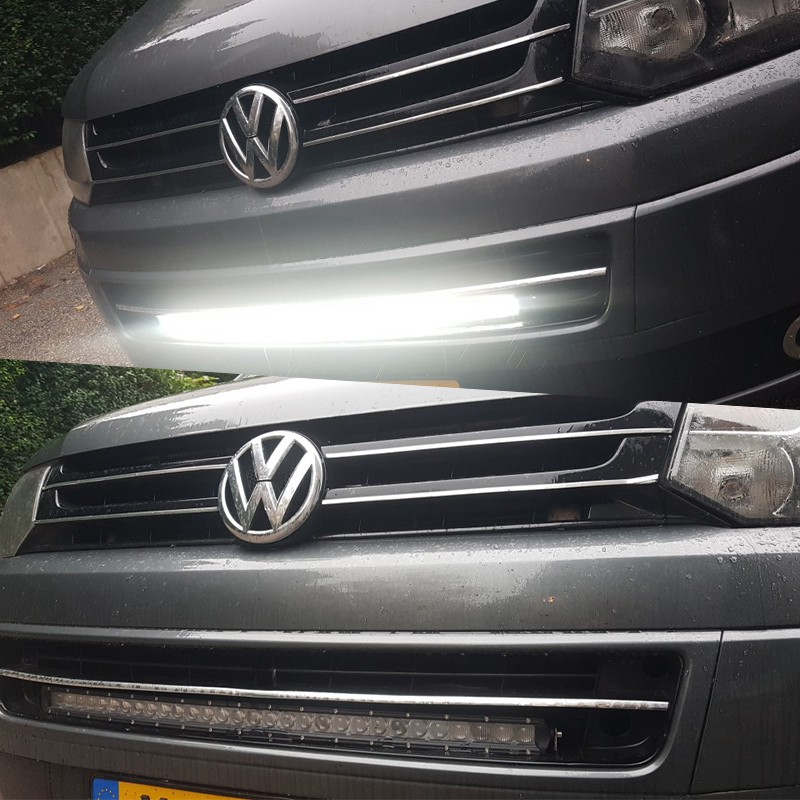

DB-SB1 series LED light bars, using high-reliability LED light source, the whole lamp life is long, the operation is safe, and maintenance-free can be realized. The design is light and compact, suitable for truck, off-road, 4×4, ATV, UTV and other vehicles.
Technical Parameters:
Product Name：LED light bar
Model No.：DB-SB1
Lifetime：≥50000h
Color Temperature：6000K-6500K white
Beam Angle：30° spot/120° flood
Working Voltage：10-30V DC
Wiring：Connector/cable

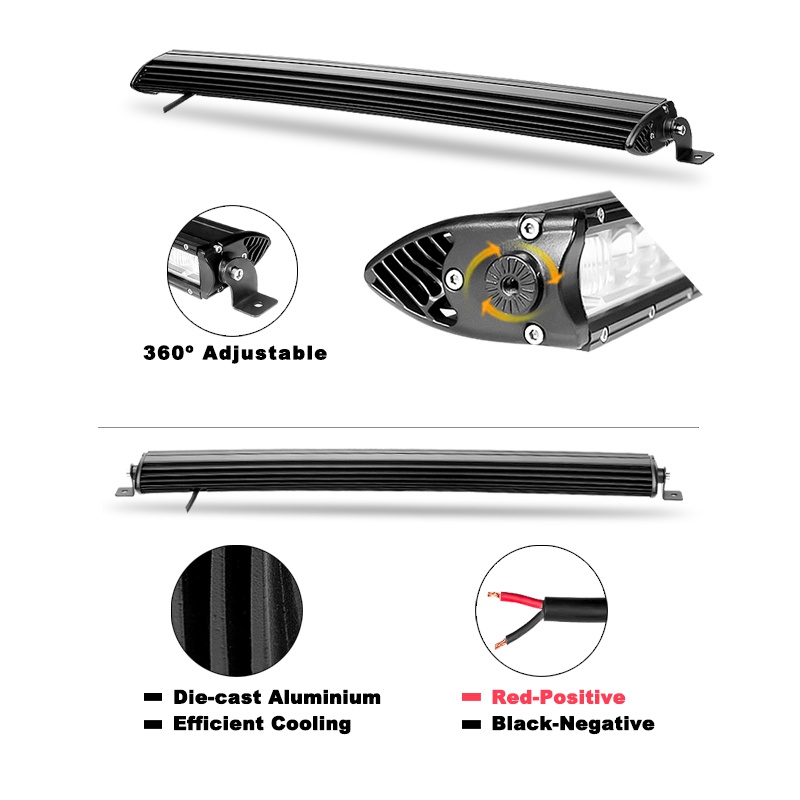

Housing Material：Aluminum Alloy
Lens Material：PC
Color：Black
Protective Rate：IP67 waterproof
Installation Method：Bracket
CK-BC105C series:

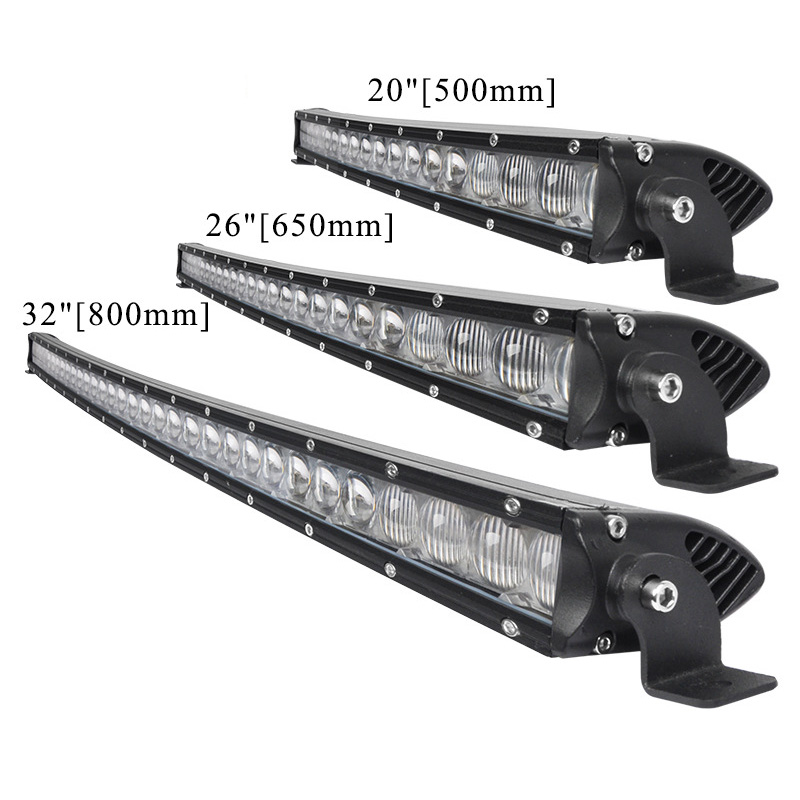

Model Size Rated Power
DB-SB1-90W
20 inch 90W
DB-SB1-100W
24 inch 100W
DB-SB1-120W
26 inch 120W
DB-SB1-150W
31 inch 150W
DB-SB1-180
37 inch 180W
DB-SB1-210
43 inch 210W
DB-SB1-240
50 inch 240W
